概要

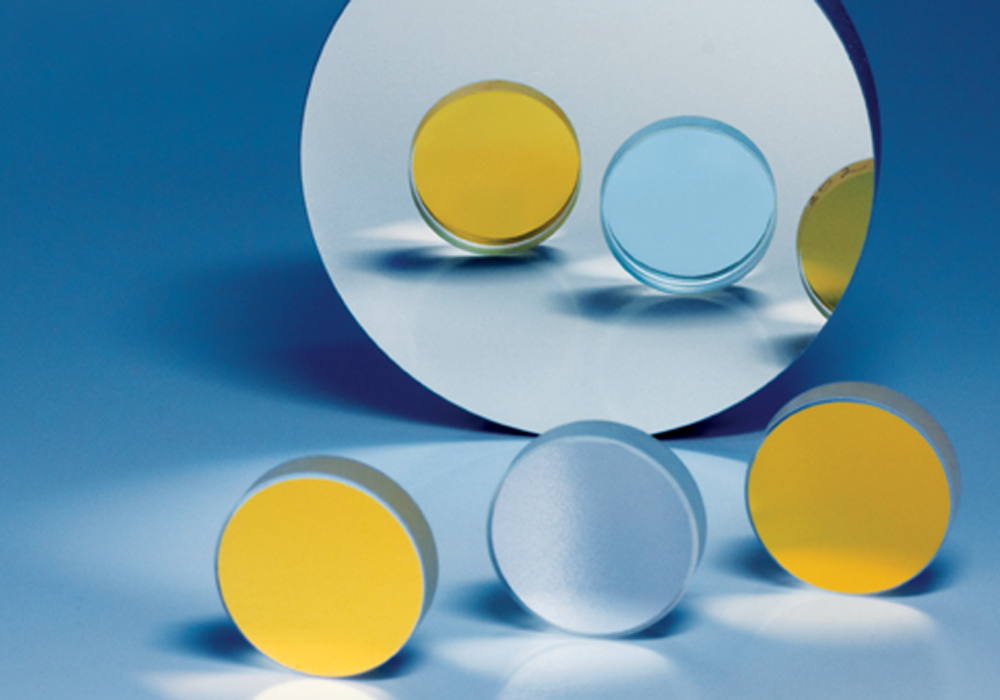

900 nm～IR領域で平均反射率> 98％を持つ保護膜付き金ミラーです。
複数の形状・サイズを揃えた豊富なラインナップからご選択頂けます。

特長

・平均反射率　> 98％＠900nm– IR
・レーザーダメージ閾値　1.0 J / cm² @1064 nm、50 Hz、11 nsパルス
・BK7、UVFS、Zerodur^®基板が利用可能
・円形、四角形、フラットまたは球面の各形状のミラーが利用可能
・保護膜なしの金ミラーも利用可能(オプション)

仕様

■ ラインナップ

型名	材質	種類	サイズ	厚み	半径
Protected Gold Flat Round Mirrors
091-0030	BK7	pl/pl	ø 12.7 mm	6 mm	-
091-0030T6	BK7	pl/pl	ø 12.7 mm	3 mm	-
092-0030	BK7	pl/pl	ø 25.4 mm	6 mm	-
095-0030	BK7	pl/pl	ø 50.8 mm	8 mm	-
097-0030	BK7	pl/pl	ø 76.2 mm	12.7 mm	-
098-0030	BK7	pl/pl	ø 101.6 mm	15 mm	-
091-3030	UVFS	pl/pl	ø 12.7 mm	3 mm	-
091-3030T6	UVFS	pl/pl	ø 12.7 mm	6 mm	-
092-3030	UVFS	pl/pl	ø 25.4 mm	6 mm	-
095-3030	UVFS	pl/pl	ø 50.8 mm	8 mm	-
097-3030	UVFS	pl/pl	ø 76.2 mm	12.7 mm	-
098-3030	UVFS	pl/pl	ø 101.6 mm	15 mm	-
Protected Gold Flat Rectangular Mirrors
091-0330	BK7	pl/pl	15.0 x 20.0 mm	6 mm	-
092-0330	BK7	pl/pl	20.0 x 30.0 mm	6 mm	-
093-0330	BK7	pl/pl	25.4 x 25.4 mm	6 mm	-
094-0330	BK7	pl/pl	25.4 x 50.8 mm	10 mm	-
095-0330	BK7	pl/pl	50.8 x 50.8 mm	10 mm	-
091-3330	UVFS	pl/pl	15.0 x 20.0 mm	6 mm	-
092-3330	UVFS	pl/pl	20.0 x 30.0 mm	6 mm	-
093-3330	UVFS	pl/pl	25.4 x 25.4 mm	6 mm	-
094-3330	UVFS	pl/pl	25.4 x 50.8 mm	10 mm	-
095-3330	UVFS	pl/pl	50.8 x 50.8 mm	10 mm	-
Gold Protected Spherical Plano-concave Mirrors Diameter: 12.7 +0.00/-0.13 mm Edge thickness (ET): 6.0±0.2 mm
092-0230R+50	BK7	pl/cx	ø 25.4 mm	6 mm	+50 mm
092-0230R+100	BK7	pl/cx	ø 25.4 mm	6 mm	+100 mm
092-0230R+150	BK7	pl/cx	ø 25.4 mm	6 mm	+150 mm
092-0230R+200	BK7	pl/cx	ø 25.4 mm	6 mm	+200 mm
092-0230R+300	BK7	pl/cx	ø 25.4 mm	6 mm	+300 mm
092-0230R+400	BK7	pl/cx	ø 25.4 mm	6 mm	+400 mm
092-0230R+500	BK7	pl/cx	ø 25.4 mm	6 mm	+500 mm
092-0230R+600	BK7	pl/cx	ø 25.4 mm	6 mm	+600 mm
092-0230R+800	BK7	pl/cx	ø 25.4 mm	6 mm	+800 mm
092-0230R+1000	BK7	pl/cx	ø 25.4 mm	6 mm	+1000 mm
092-0230R+1500	BK7	pl/cx	ø 25.4 mm	6 mm	+1500 mm
092-0230R+2000	BK7	pl/cx	ø 25.4 mm	6 mm	+2000 mm
092-0230R+4000	BK7	pl/cx	ø 25.4 mm	6 mm	+4000 mm
092-0230R+5000	BK7	pl/cx	ø 25.4 mm	6 mm	+5000 mm
092-3230R+50	UVFS	pl/cx	ø 25.4 mm	6 mm	+50 mm
092-3230R+100	UVFS	pl/cx	ø 25.4 mm	6 mm	+100 mm
092-3230R+150	UVFS	pl/cx	ø 25.4 mm	6 mm	+150 mm
092-3230R+200	UVFS	pl/cx	ø 25.4 mm	6 mm	+200 mm
092-3230R+300	UVFS	pl/cx	ø 25.4 mm	6 mm	+300 mm
092-3230R+400	UVFS	pl/cx	ø 25.4 mm	6 mm	+400 mm
092-3230R+500	UVFS	pl/cx	ø 25.4 mm	6 mm	+500 mm
092-3230R+600	UVFS	pl/cx	ø 25.4 mm	6 mm	+600 mm
092-3230R+800	UVFS	pl/cx	ø 25.4 mm	6 mm	+800 mm
092-3230R+1000	UVFS	pl/cx	ø 25.4 mm	6 mm	+1000 mm
092-3230R+1500	UVFS	pl/cx	ø 25.4 mm	6 mm	+1500 mm
092-3230R+2000	UVFS	pl/cx	ø 25.4 mm	6 mm	+2000 mm
092-3230R+4000	UVFS	pl/cx	ø 25.4 mm	6 mm	+4000 mm
092-3230R+5000	UVFS	pl/cx	ø 25.4 mm	6 mm	+5000 mm
Gold Protected Spherical Plano-concave Mirrors Diameter: 25.4+0.00/-0.13 mm Edge thickness (ET): 6.0±0.2 mm
092-0130R-50	BK7	pl/cv	ø 25.4 mm	6 mm	-50 mm
092-0130R-75	BK7	pl/cv	ø 25.4 mm	6 mm	-75 mm
092-0130R-100	BK7	pl/cv	ø 25.4 mm	6 mm	-100 mm
092-0130R-150	BK7	pl/cv	ø 25.4 mm	6 mm	-150 mm
092-0130R-200	BK7	pl/cv	ø 25.4 mm	6 mm	-200 mm
092-0130R-250	BK7	pl/cv	ø 25.4 mm	6 mm	-250 mm
092-0130R-300	BK7	pl/cv	ø 25.4 mm	6 mm	-300 mm
092-0130R-400	BK7	pl/cv	ø 25.4 mm	6 mm	-400 mm
092-0130R-500	BK7	pl/cv	ø 25.4 mm	6 mm	-500 mm
092-0130R-600	BK7	pl/cv	ø 25.4 mm	6 mm	-600 mm
092-0130R-750	BK7	pl/cv	ø 25.4 mm	6 mm	-750 mm
092-0130R-800	BK7	pl/cv	ø 25.4 mm	6 mm	-800 mm
092-0130R-1000	BK7	pl/cv	ø 25.4 mm	6 mm	-1000 mm
092-0130R-1500	BK7	pl/cv	ø 25.4 mm	6 mm	-1500 mm
092-0130R-2000	BK7	pl/cv	ø 25.4 mm	6 mm	-2000 mm
092-0130R-2500	BK7	pl/cv	ø 25.4 mm	6 mm	-2500 mm
092-0130R-3000	BK7	pl/cv	ø 25.4 mm	6 mm	-3000 mm
092-0130R-4000	BK7	pl/cv	ø 25.4 mm	6 mm	-4000 mm
092-0130R-5000	BK7	pl/cv	ø 25.4 mm	6 mm	-5000 mm
092-0130R-6000	BK7	pl/cv	ø 25.4 mm	6 mm	-6000 mm
092-0130R-8000	BK7	pl/cv	ø 25.4 mm	6 mm	-8000 mm
092-3130R-50	UVFS	pl/cv	ø 25.4 mm	6 mm	-50 mm
092-3130R-75	UVFS	pl/cv	ø 25.4 mm	6 mm	-75 mm
092-3130R-100	UVFS	pl/cv	ø 25.4 mm	6 mm	-100 mm
092-3130R-150	UVFS	pl/cv	ø 25.4 mm	6 mm	-150 mm
092-3130R-200	UVFS	pl/cv	ø 25.4 mm	6 mm	-200 mm
092-3130R-250	UVFS	pl/cv	ø 25.4 mm	6 mm	-250 mm
092-3130R-300	UVFS	pl/cv	ø 25.4 mm	6 mm	-300 mm
092-3130R-400	UVFS	pl/cv	ø 25.4 mm	6 mm	-400 mm
092-3130R-500	UVFS	pl/cv	ø 25.4 mm	6 mm	-500 mm
092-3130R-600	UVFS	pl/cv	ø 25.4 mm	6 mm	-600 mm
092-3130R-750	UVFS	pl/cv	ø 25.4 mm	6 mm	-750 mm
092-3130R-800	UVFS	pl/cv	ø 25.4 mm	6 mm	-800 mm
092-3130R-1000	UVFS	pl/cv	ø 25.4 mm	6 mm	-1000 mm
092-3130R-1500	UVFS	pl/cv	ø 25.4 mm	6 mm	-1500 mm
092-3130R-2000	UVFS	pl/cv	ø 25.4 mm	6 mm	-2000 mm
092-3130R-2500	UVFS	pl/cv	ø 25.4 mm	6 mm	-2500 mm
092-3130R-3000	UVFS	pl/cv	ø 25.4 mm	6 mm	-3000 mm
092-3130R-4000	UVFS	pl/cv	ø 25.4 mm	6 mm	-4000 mm
092-3130R-5000	UVFS	pl/cv	ø 25.4 mm	6 mm	-5000 mm
092-3130R-6000	UVFS	pl/cv	ø 25.4 mm	6 mm	-6000 mm
092-3130R-8000	UVFS	pl/cv	ø 25.4 mm	6 mm	-8000 mm
Gold Protected Spherical Plano-concave Mirrors Diameter: 50.8+0.00/-0.13 mm Edge thickness (ET): 10.0±0.2 mm
095-0130R-100	BK7	pl/cv	ø 50.8 mm	10 mm	-100 mm
095-0130R-150	BK7	pl/cv	ø 50.8 mm	10 mm	-150 mm
095-0130R-200	BK7	pl/cv	ø 50.8 mm	10 mm	-200 mm
095-0130R-250	BK7	pl/cv	ø 50.8 mm	10 mm	-250 mm
095-0130R-300	BK7	pl/cv	ø 50.8 mm	10 mm	-300 mm
095-0130R-400	BK7	pl/cv	ø 50.8 mm	10 mm	-400 mm
095-0130R-500	BK7	pl/cv	ø 50.8 mm	10 mm	-500 mm
095-0130R-600	BK7	pl/cv	ø 50.8 mm	10 mm	-600 mm
095-0130R-800	BK7	pl/cv	ø 50.8 mm	10 mm	-800 mm
095-0130R-1000	BK7	pl/cv	ø 50.8 mm	10 mm	-1000 mm
095-0130R-1500	BK7	pl/cv	ø 50.8 mm	10 mm	-1500 mm
095-0130R-2000	BK7	pl/cv	ø 50.8 mm	10 mm	-2000 mm
095-0130R-2500	BK7	pl/cv	ø 50.8 mm	10 mm	-2500 mm
095-0130R-3000	BK7	pl/cv	ø 50.8 mm	10 mm	-3000 mm
095-0130R-4000	BK7	pl/cv	ø 50.8 mm	10 mm	-4000 mm
095-0130R-5000	BK7	pl/cv	ø 50.8 mm	10 mm	-5000 mm
095-0130R-6000	BK7	pl/cv	ø 50.8 mm	10 mm	-6000 mm
095-0130R-8000	BK7	pl/cv	ø 50.8 mm	10 mm	-8000 mm
095-0130R-10000	BK7	pl/cv	ø 50.8 mm	10 mm	-10000 mm
095-3130R-100	UVFS	pl/cv	ø 50.8 mm	10 mm	-100 mm
095-3130R-150	UVFS	pl/cv	ø 50.8 mm	10 mm	-150 mm
095-3130R-200	UVFS	pl/cv	ø 50.8 mm	10 mm	-200 mm
095-3130R-250	UVFS	pl/cv	ø 50.8 mm	10 mm	-250 mm
095-3130R-300	UVFS	pl/cv	ø 50.8 mm	10 mm	-300 mm
095-3130R-400	UVFS	pl/cv	ø 50.8 mm	10 mm	-400 mm
095-3130R-500	UVFS	pl/cv	ø 50.8 mm	10 mm	-500 mm
095-3130R-600	UVFS	pl/cv	ø 50.8 mm	10 mm	-600 mm
095-3130R-800	UVFS	pl/cv	ø 50.8 mm	10 mm	-800 mm
095-3130R-1000	UVFS	pl/cv	ø 50.8 mm	10 mm	-1000 mm
095-3130R-1500	UVFS	pl/cv	ø 50.8 mm	10 mm	-1500 mm
095-3130R-2000	UVFS	pl/cv	ø 50.8 mm	10 mm	-2000 mm
095-3130R-3000	UVFS	pl/cv	ø 50.8 mm	10 mm	-2500 mm
095-3130R-4000	UVFS	pl/cv	ø 50.8 mm	10 mm	-4000 mm
095-3130R-5000	UVFS	pl/cv	ø 50.8 mm	10 mm	-5000 mm
095-3130R-6000	UVFS	pl/cv	ø 50.8 mm	10 mm	-6000 mm
095-3130R-8000	UVFS	pl/cv	ø 50.8 mm	10 mm	-8000 mm
095-3130R-10000	UVFS	pl/cv	ø 50.8 mm	10 mm	-10000 mm
Protected Gold Spherical Plano-Convex Mirrors Diameter: 12.7 +0.00/-0.13 mm Center thickness (CT): 6.0±0.2 mm
091-0230R+50	BK7	pl/cx	ø 25.4 mm	6 mm	+50 mm
091-0230R+100	BK7	pl/cx	ø 25.4 mm	6 mm	+100 mm
091-0230R+150	BK7	pl/cx	ø 25.4 mm	6 mm	+150 mm
091-0230R+200	BK7	pl/cx	ø 25.4 mm	6 mm	+200 mm
091-0230R+300	BK7	pl/cx	ø 25.4 mm	6 mm	+300 mm
091-0230R+400	BK7	pl/cx	ø 25.4 mm	6 mm	+400 mm
091-0230R+500	BK7	pl/cx	ø 25.4 mm	6 mm	+500 mm
091-3230R+50	UVFS	pl/cx	ø 25.4 mm	6 mm	+50 mm
091-3230R+100	UVFS	pl/cx	ø 25.4 mm	6 mm	+100 mm
091-3230R+150	UVFS	pl/cx	ø 25.4 mm	6 mm	+150 mm
091-3230R+200	UVFS	pl/cx	ø 25.4 mm	6 mm	+200 mm
091-3230R+300	UVFS	pl/cx	ø 25.4 mm	6 mm	+300 mm
091-3230R+400	UVFS	pl/cx	ø 25.4 mm	6 mm	+400 mm
091-3230R+500	UVFS	pl/cx	ø 25.4 mm	6 mm	+500 mm
Protected Gold Spherical Plano-Convex Mirrors Diameter: 25.4+0.00/-0.13 mm Center thickness (CT): 6.0±0.2 mm
092-0230R+50	BK7	pl/cx	ø 25.4 mm	6 mm	+50 mm
092-0230R+100	BK7	pl/cx	ø 25.4 mm	6 mm	+100 mm
092-0230R+150	BK7	pl/cx	ø 25.4 mm	6 mm	+150 mm
092-0230R+200	BK7	pl/cx	ø 25.4 mm	6 mm	+200 mm
092-0230R+300	BK7	pl/cx	ø 25.4 mm	6 mm	+300 mm
092-0230R+400	BK7	pl/cx	ø 25.4 mm	6 mm	+400 mm
092-0230R+500	BK7	pl/cx	ø 25.4 mm	6 mm	+500 mm
092-0230R+600	BK7	pl/cx	ø 25.4 mm	6 mm	+600 mm
092-0230R+800	BK7	pl/cx	ø 25.4 mm	6 mm	+800 mm
092-0230R+1000	BK7	pl/cx	ø 25.4 mm	6 mm	+1000 mm
092-0230R+1500	BK7	pl/cx	ø 25.4 mm	6 mm	+1500 mm
092-0230R+2000	BK7	pl/cx	ø 25.4 mm	6 mm	+2000 mm
092-0230R+4000	BK7	pl/cx	ø 25.4 mm	6 mm	+4000 mm
092-0230R+5000	BK7	pl/cx	ø 25.4 mm	6 mm	+5000 mm
092-3230R+50	UVFS	pl/cx	ø 25.4 mm	6 mm	+50 mm
092-3230R+100	UVFS	pl/cx	ø 25.4 mm	6 mm	+100 mm
092-3230R+150	UVFS	pl/cx	ø 25.4 mm	6 mm	+150 mm
092-3230R+200	UVFS	pl/cx	ø 25.4 mm	6 mm	+200 mm
092-3230R+300	UVFS	pl/cx	ø 25.4 mm	6 mm	+300 mm
092-3230R+400	UVFS	pl/cx	ø 25.4 mm	6 mm	+400 mm
092-3230R+500	UVFS	pl/cx	ø 25.4 mm	6 mm	+500 mm
092-3230R+600	UVFS	pl/cx	ø 25.4 mm	6 mm	+600 mm
092-3230R+800	UVFS	pl/cx	ø 25.4 mm	6 mm	+800 mm
092-3230R+1000	UVFS	pl/cx	ø 25.4 mm	6 mm	+1000 mm
092-3230R+1500	UVFS	pl/cx	ø 25.4 mm	6 mm	+1500 mm
092-3230R+2000	UVFS	pl/cx	ø 25.4 mm	6 mm	+2000 mm
092-3230R+4000	UVFS	pl/cx	ø 25.4 mm	6 mm	+4000 mm
092-3230R+5000	UVFS	pl/cx	ø 25.4 mm	6 mm	+5000 mm
Protected Gold Spherical Plano-Convex Mirrors Diameter: 50.8+0.00/-0.13 mm Center thickness (CT): 10.0±0.2 mm
095-0230R+100	BK7	pl/cx	ø 50.8 mm	10 mm	+100 mm
095-0230R+150	BK7	pl/cx	ø 50.8 mm	10 mm	+150 mm
095-0230R+200	BK7	pl/cx	ø 50.8 mm	10 mm	+200 mm
095-0230R+300	BK7	pl/cx	ø 50.8 mm	10 mm	+300 mm
095-0230R+400	BK7	pl/cx	ø 50.8 mm	10 mm	+400 mm
095-0230R+500	BK7	pl/cx	ø 50.8 mm	10 mm	+500 mm
095-0230R+600	BK7	pl/cx	ø 50.8 mm	10 mm	+600 mm
095-0230R+800	BK7	pl/cx	ø 50.8 mm	10 mm	+800 mm
095-0230R+1000	BK7	pl/cx	ø 50.8 mm	10 mm	+1000 mm
095-0230R+1500	BK7	pl/cx	ø 50.8 mm	10 mm	+1500 mm
095-0230R+2000	BK7	pl/cx	ø 50.8 mm	10 mm	+2000 mm
095-3230R+100	UVFS	pl/cx	ø 50.8 mm	10 mm	+100 mm
095-3230R+150	UVFS	pl/cx	ø 50.8 mm	10 mm	+150 mm
095-3230R+200	UVFS	pl/cx	ø 50.8 mm	10 mm	+200 mm
095-3230R+300	UVFS	pl/cx	ø 50.8 mm	10 mm	+300 mm
095-3230R+400	UVFS	pl/cx	ø 50.8 mm	10 mm	+400 mm
095-3230R+500	UVFS	pl/cx	ø 50.8 mm	10 mm	+500 mm
095-3230R+600	UVFS	pl/cx	ø 50.8 mm	10 mm	+600 mm
095-3230R+800	UVFS	pl/cx	ø 50.8 mm	10 mm	+800 mm
095-3230R+1000	UVFS	pl/cx	ø 50.8 mm	10 mm	+1000 mm
095-3230R+1500	UVFS	pl/cx	ø 50.8 mm	10 mm	+1500 mm
095-3230R+2000	UVFS	pl/cx	ø 50.8 mm	10 mm	+2000 mm

■ 仕様

仕様
材質	BK7, UVFS
S1 表面平坦度*	λ/10@633 nm
S1 表面精度*	40-20 scratch & dig (MIL-PRF-13830B)
S2 表面精度	Commercial polish
開口部	>90% of the diameter
直径公差	0.00/-0.13 mm
厚み公差	±0.2 mm
レーザーダメージ閾値@1064 nm**	1.0 J/cm² at 1064 nm, 50 Hz, 11 nsec pulses
S1* Surface for Spherical mirrors is curved
**Laser Induced damage threshold results are measured by LIDARIS according to ISO 21254-2: 1000-on-1 test procedure. Please follow this link for more information about LIDARIS
